pdx:addBookmark Inserts a bookmark into a Word document

pdx:addBookmark

Inserts a bookmark into a Word document.

Description

Element definition

<pdx:content>
    <pdx:addBookmark pdx:type="start|end" pdx:name="" pdx:wordFragmentName="" />
</pdx:content>

This element allows for the insertion of bookmarks into a Word document.

This method should be called at least twice: one to open the bookmark tag (type start) and the other one to close it (type end).

One may link the generated bookmark with the addLink element to facilitate the internal navigation through the Word document contents.

Attributes and sub-elements

options

key	Description
type	The bookmark type. posible values are 'start' and 'end'
name	The name that we want to give to the corresponding bookmark. This is the parameter that should be used within the addLink method to link to the bookmarked content

Code samples

#Example 1

config.xml

<?xml version="1.0" encoding="UTF-8"?>
<pdx:document xmlns:pdx="http://www.phpdocx.com/main">
    <pdx:config>
        <pdx:output pdx:name="output" pdx:type="docx" />
    </pdx:config>
</pdx:document>

content.xml

<?xml version="1.0" encoding="UTF-8"?>
<pdx:document xmlns:pdx="http://www.phpdocx.com/main">
    <pdx:content>
        <pdx:addBookmark pdx:type="start" pdx:name="bookmark_name" />
        <pdx:addText>
            <pdx:textRun>
                <pdx:data pdx:dataId="" pdx:dataType="text">Text that has been bookmarked.</pdx:data>
                <pdx:textRunStyle>
                    <pdx:font pdx:value="Arial" />
                </pdx:textRunStyle>
            </pdx:textRun>
        </pdx:addText>
        <pdx:addBookmark pdx:type="end" pdx:name="bookmark_name" />
    </pdx:content>
</pdx:document>

settings.xml

<?xml version="1.0" encoding="UTF-8"?>
<pdx:document xmlns:pdx="http://www.phpdocx.com/main">
    <pdx:settings>
    </pdx:settings>
</pdx:document>

import os as os
import sys as sys
sys.path.append(os.path.abspath("wrappers/python/XmlDocx"))
import XmlDocx as XmlDocx
document = XmlDocx.XmlDocx("config.xml")
document.setDocumentProperties("settings.xml")
document.addContent("content.xml")
document.setXmlDocxPath("xmldocx path")
document.render()

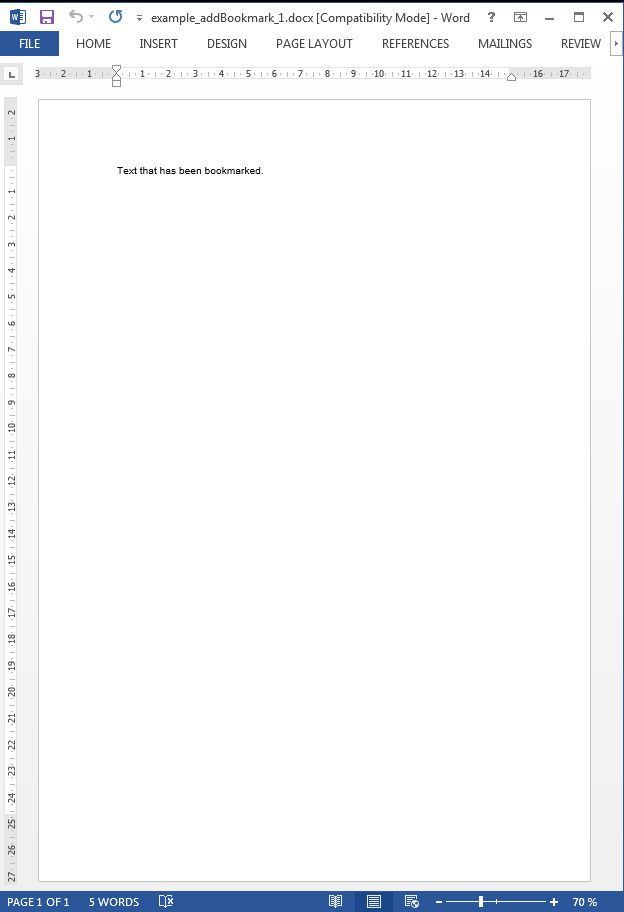

The resulting Word document looks like:
